Square Flex Motor Skylight with Straight Socket 20cm Skylux iWindow2

Square Flex Motor Skylight with Straight Socket 20cm Skylux iWindow2

Regular price 6.464,00 zł
Regular price 10.175,00 zł Sale price 6.464,00 zł
Sale Sold out
Tax included. Shipping calculated at checkout.
Dimensions
Skylux iWindow2 Flex Motor is a flat glass electric opening window with a stylish design that can be installed on any flat roof.

SKU:90

View full details

Descripción

Depending on the size, the flat roof window opens using 1 or 2 230V chain motors integrated into the frame. The opening is 30 cm using the included remote control, although it can also be connected to a switch/push-button.

Between the double glazing and the plinth, the window incorporates a PVC frame with EPS with a 4º slope to prevent water from stagnating.

The window includes a rain detector that automatically closes the window in case of rain.

CHARACTERISTICS

  • Specially designed to install on flat roofs with an inclination between 0º and 21º.
  • It is not advisable to install in very humid environments such as swimming pools or in places where there is direct influence with chemical substances.
  • The hinges are always placed at the lowest part of the frame slope and the motor at the highest. In rectangular measurements, the hinges are placed in the most longitudinal part.
  • Easy to install, Skylux iWindow2 Flex Motor windows are the best solution to provide natural light and ventilation on horizontal roofs, guaranteeing great thermal and acoustic insulation and total water and wind tightness.

straight socket and dimensions

The Skylux iWindow 2 Fixed window with straight base is the only one on the market that allows 100% light entry, the opening of the forging hole is the same as the light entry measurement.

The straight socket is made of white PVC and offers great resistance. Its interior is filled with EPS (Expanded Polystyrene), which provides excellent thermal insulation value. It can be installed on any type of flat roof.

Its internal surface is smooth and does not need any additional treatment after placement. The straight plinth has a U-shaped groove at the bottom designed for finishing, if desired, with PYL laminated gypsum boards.

  • Total thermal transmission Ug (EN 673): 1.00 W/m²K
  • Thermal transmission Ut (EN 1873): 1.00 W/m²K
  • Uup socket thermal transmission: 0.61 W/m²K
  • Height: 20cm
  • Thickness: 6cm
  • EPS Density: 28 Kg/m³
  • PVC density: 1,500 Kg/m³
  • Window luminous transmission TL(EN 410): 66.9%
  • Window solar factor g (EN 410): 42 %
  • Rw window acoustic insulation (EN 717-1): 39 dB

GLAZING

The elegantly designed double safety glazing is placed on top of a PVC frame with EPS with a 4º slope to prevent water from stagnating and guarantees great thermal and acoustic insulation and total wind tightness.

  • Double HR++ safety glass
  • Interior glass: 4+4 mm with 2 PVB (Polyvinyl Butyral) sheets
  • Outer glass: 6 mm tempered
  • Insulating chamber: 24 mm (with RPT thermal break)
  • Insulating chamber gas: Argon Gas
  • Anti-intrusion resistance level (EN 356): P2A
  • Reaction to fire (EN 13501-1): A1

***This skylight has a delivery time of between 3-4 weeks

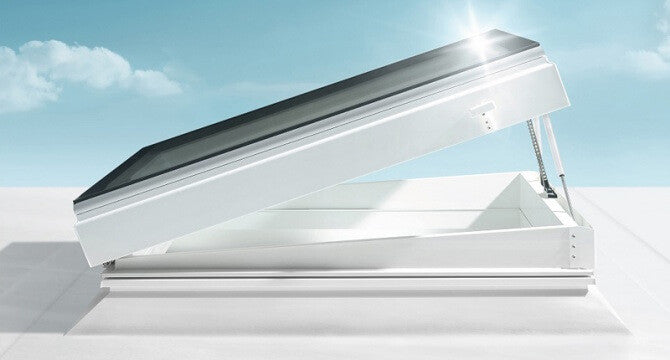

Claraboya Cuadrada Flex Motor con zócalo Recto 20cm Skylux iWindow2 MAYDISA - 1
