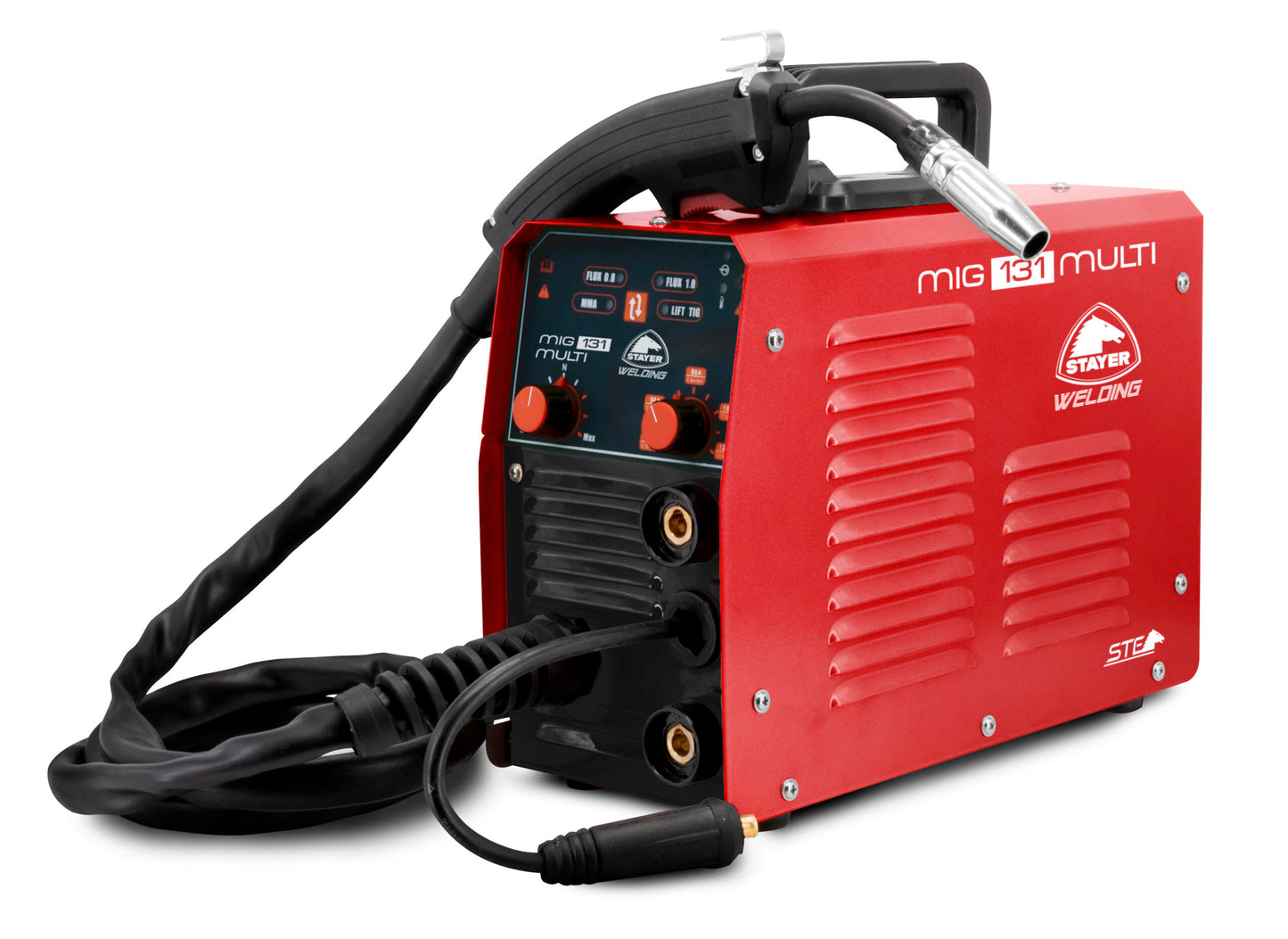

Inverter MIG 131 MULTI gasless hollow wire welder + 0.45kg 0.9mm Stayer wire spool

Descripción

The MIG 131 MULTI inverter welder is a multifunction welding equipment prepared for welding with hollow wire without the need for gas (Flux Core), TIG LIFT ARC or coated electrode.

The fact that it welds with flux-cored wire without the need to connect a gas cylinder makes it a very convenient device for use on outdoor construction sites or at heights. Furthermore, since most of the current passes through the hollow wire, it generates faster fusion, increasing the deposition rate and welding speed. Therefore, it is much more productive than using solid wire. Furthermore, the weld bead formed by flux-core welding is of higher quality thanks to the slag it generates.

CHARACTERISTICS

• This equipment is compact, and has a very resistant structure that complies with all European specifications 2011/65/EU, 2014/35/EU, 2014/30/EU and EN 60974.
• Its amperage can range from 20 to 120 A to adapt the power to the work needs, and its no-load voltage is 60 Vdc.
• Its regulation is very simple, as it has classic analog controls for adjusting current, voltage and wire speed, as well as a wire priming button for conveniently feeding the torch.
• It allows a maximum tungsten electrode diameter of 2.0 mm and is fully suitable for use with generators. It also has a capacity for coils of up to 1 kg.

ADVANTAGES

• FCAW flux-cored arc welding equipment (also known as flux core) with built-in torch. STAYER MIG MULTI range, suitable for use with coated electrode.

• Lightweight, multipurpose wire welding equipment with built-in torch for coils up to 1 kg for use without gas.

• Simple and adaptable configuration between 0.9mm and 1mm hollow wire welding, coated electrode, with just one button.

• Professional, synergistic wire speed and power output controls with ultra-fast response, synchronizing speed with the required amperage.

• Portable, no gas bottle required thanks to the use of the “Flux Core” hollow wire, which is very flexible and versatile.

• Compact design, with carrying handle and reduced weight, suitable for home use with 16A consumption limiter.

• IGBT technology based on state-of-the-art microprocessor control capable of providing up to 120 amps.

• For wire welding, connect torch return to negative terminal (-) and ground clamp to positive terminal (+).

• Prepared for use with a stabilized generator, given its voltage input range of +/-17%.

SPECS

INCLUDES

• Power cable / 2m x 1.5 mm2

• Ground cable with clamp / 1.5m x 10 mm2

• Electrode cable with clamp / 2.5 m x 10 mm2

• Internal winder up to 1kg

• Torch integrated into the equipment
• Hollow wire spool 0.45kg 0.9mm
